Wire-control chassis

Wire-control chassis consists of multiple elements, One box, ESC, EPB, N-Booster, ABS and VSC unit. These systems assist drivers better control the vehicle and prevent accidents from happening.

Ronstein has a wealth of experience in the assembly and testing of these products and has matured various solutions to assist customers in planning future factories and providing turnkey intelligent production lines.

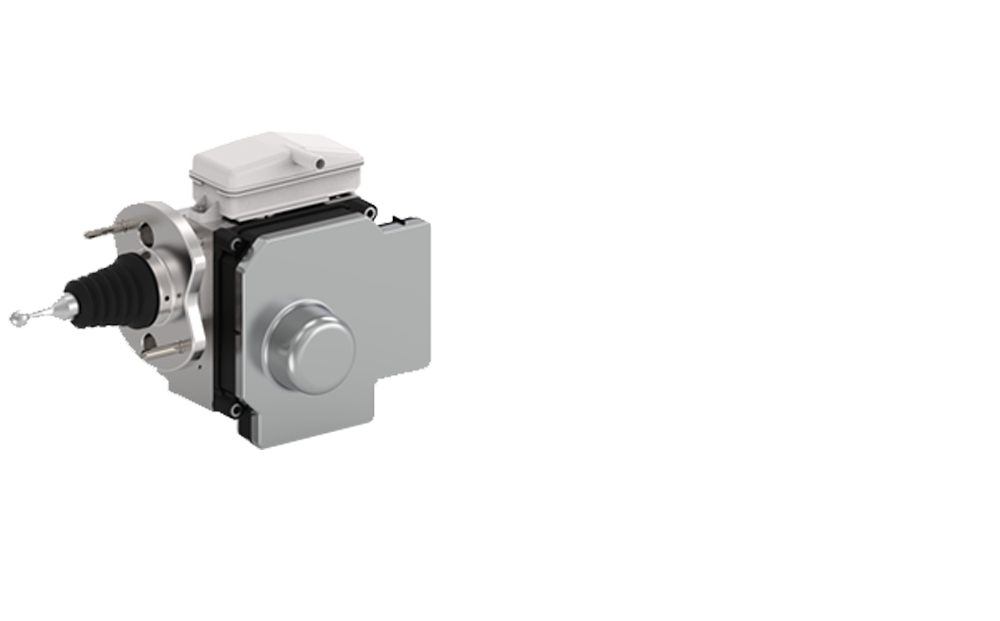

ONE BOX

One box Assembly and Testing Production Line

Process:

Full-automatic feeding and assembly

Loop 1: Valve block body assembly, ball pressing, sealing assembly, solenoid valve assembly

Loop 2: ECU assembly, coil assembly, motor assembly, adjustment rod assembly, tank assembly, EOL(End-of-Line) test.

Cycle Time: 35S

ESC

ESC Assembly and Testing Production Line

Process:

Valve block body assembly, ball pressing, sealing assembly, valve assembly, PCB press fit, coil assembly, dispensing, EOL(End-of-Line) test.

Cycle Time: 30S

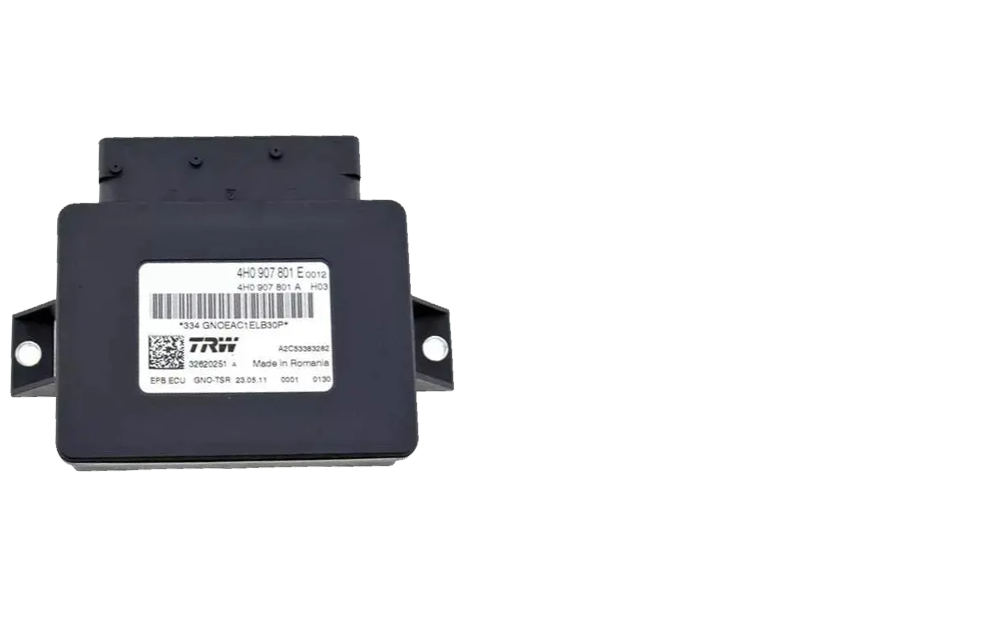

EPB

EPB Assembly and Testing Production Line

Process:

PCB press fit, plasma treatment, dispensing, tightening, leakage test, EOL(End-of-Line) test.

Cycle Time: 32S

Nbooster

N-booster Assembly and Testing Production Line

Process:

Valve block body assembly, ball pressing, sealing assembly, valve assembly, motor assembly, adjustment rod assembly, tank assembly, EOL(End-of-Line) test.

Cycle Time: 40S

ABS

ABS Assembly and Testing Production Line

Process:

Valve block body assembly, ball pressing, sealing assembly, valve assembly, PCB pressi fit coil assembly, dispensing, EOL(End-of-Line) test.

Cycle Time: 35S

ABS/VSC Valve Body

ABS/VSC Valve Body Assembly and Testing Production Line

Process:

Full-automatic feeding and assembly, ball pressing, laser welding and laser marking

Cycle Time: 35S

ABS ECU

ABS ECU Assembly and Testing Production Line

Process:

Full-automatic feeding and assembly, plasma treatment, dispensing, GND plate and spring assembly, PCB press fit, coil assembly, dispensing, EOL(End-of-Line) test.

Cycle Time: 15S
