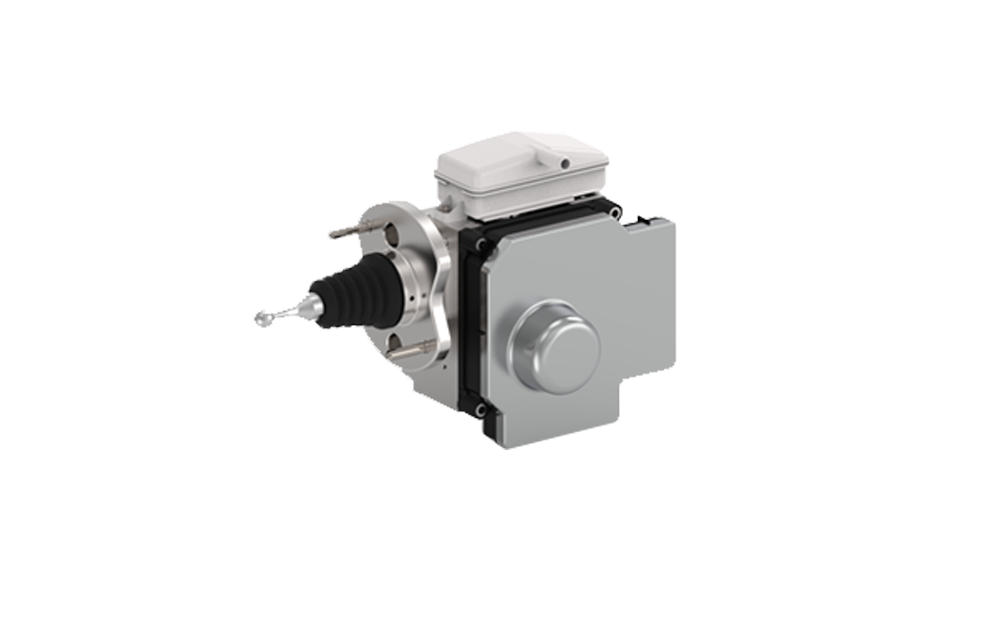

One box Assembly and Testing Production Line

Process:

Full-automatic feeding and assembly

Loop 1: Valve block body assembly, ball pressing, sealing assembly, solenoid valve assembly

Loop 2: ECU assembly, coil assembly, motor assembly, adjustment rod assembly, tank assembly, EOL(End-of-Line) test.

Cycle Time: 35S

ESC Assembly and Testing Production Line

Process:

Valve block body assembly, ball pressing, sealing assembly, valve assembly, PCB press fit, coil assembly, dispensing, EOL(End-of-Line) test.

Cycle Time: 30S

EPB Assembly and Testing Production Line

Process:

PCB press fit, plasma treatment, dispensing, tightening, leakage test, EOL(End-of-Line) test.

Cycle Time: 32S

N-booster Assembly and Testing Production Line

Process:

Valve block body assembly, ball pressing, sealing assembly, valve assembly, motor assembly, adjustment rod assembly, tank assembly, EOL(End-of-Line) test.

Cycle Time: 40S

ABS Assembly and Testing Production Line

Process:

Valve block body assembly, ball pressing, sealing assembly, valve assembly, PCB pressi fit coil assembly, dispensing, EOL(End-of-Line) test.

Cycle Time: 35S
